Chevy LS1 Scat Pro Sport H-Beam Connecting Rods 6.100 2.100 Pin ARP Bolts

Chevy LS1 Scat Pro Sport H-Beam Connecting Rods 6.100 2.100 Pin ARP Bolts

$600.00
$600.00
Sale Sold out

Free shipping within the Continental USA

1 in stock

Manufacturer: SCAT Engine Components

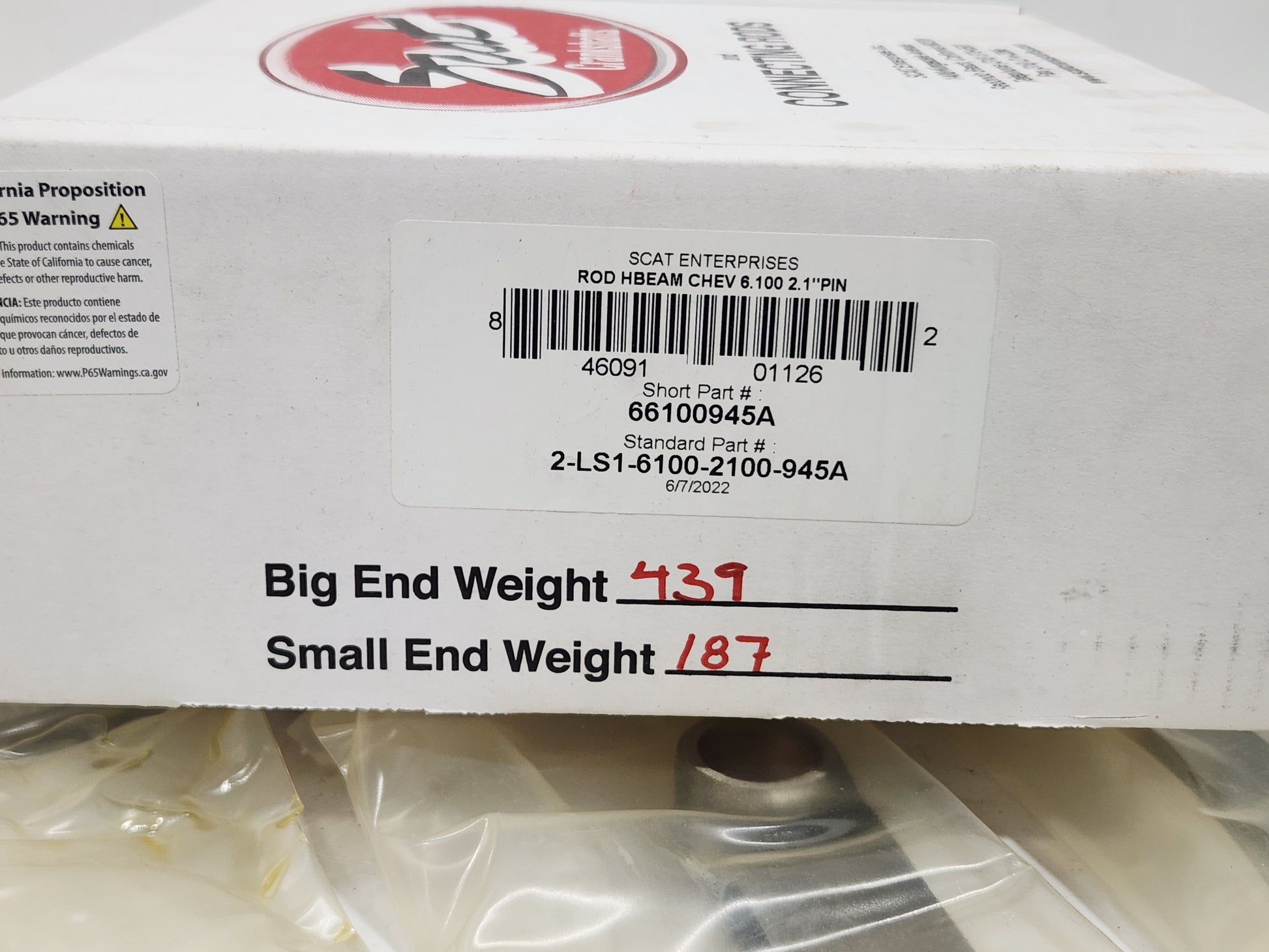

Part # 66100945A

Interchange Part # 2-LS1-6100-2100-945A

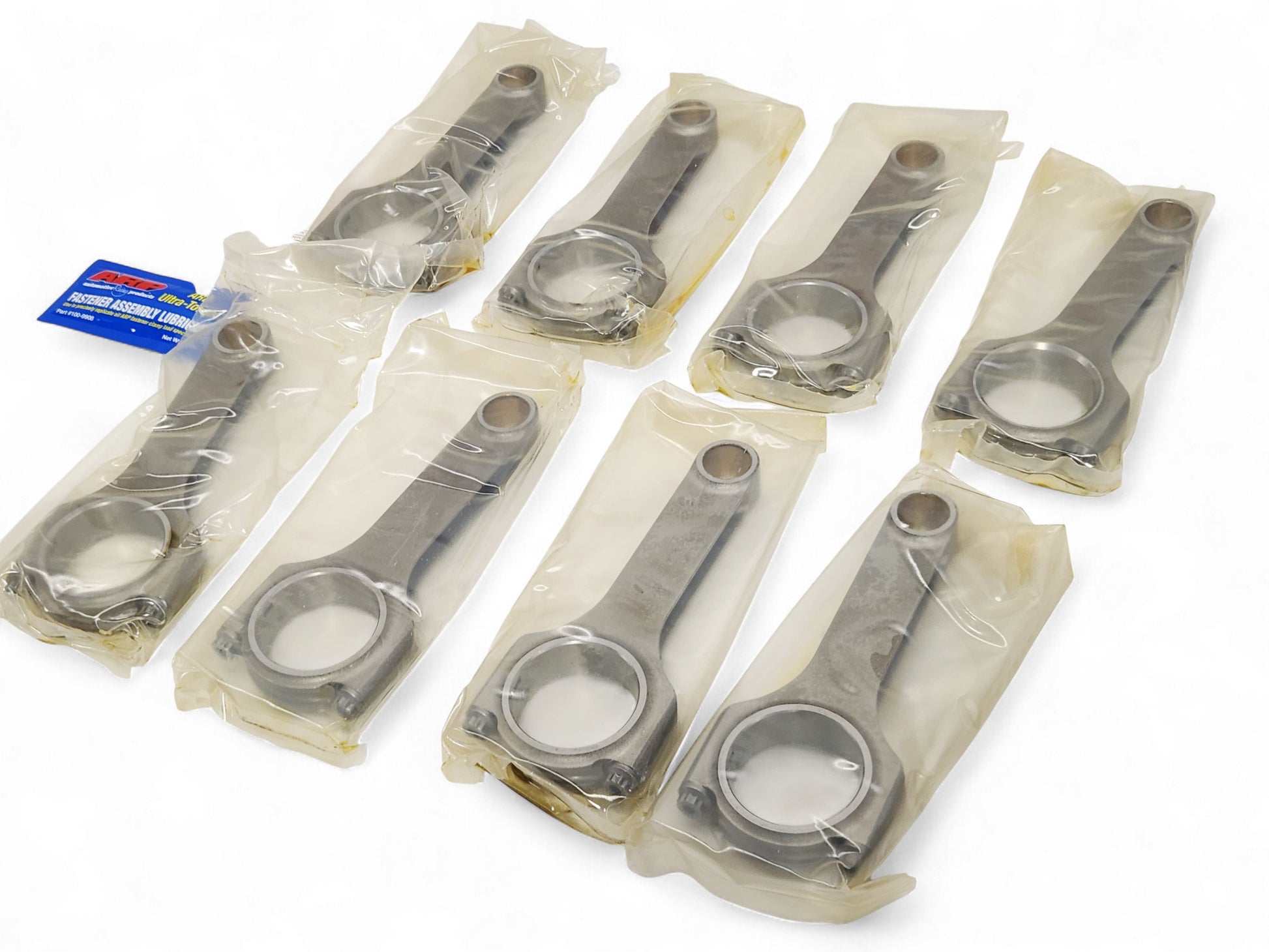

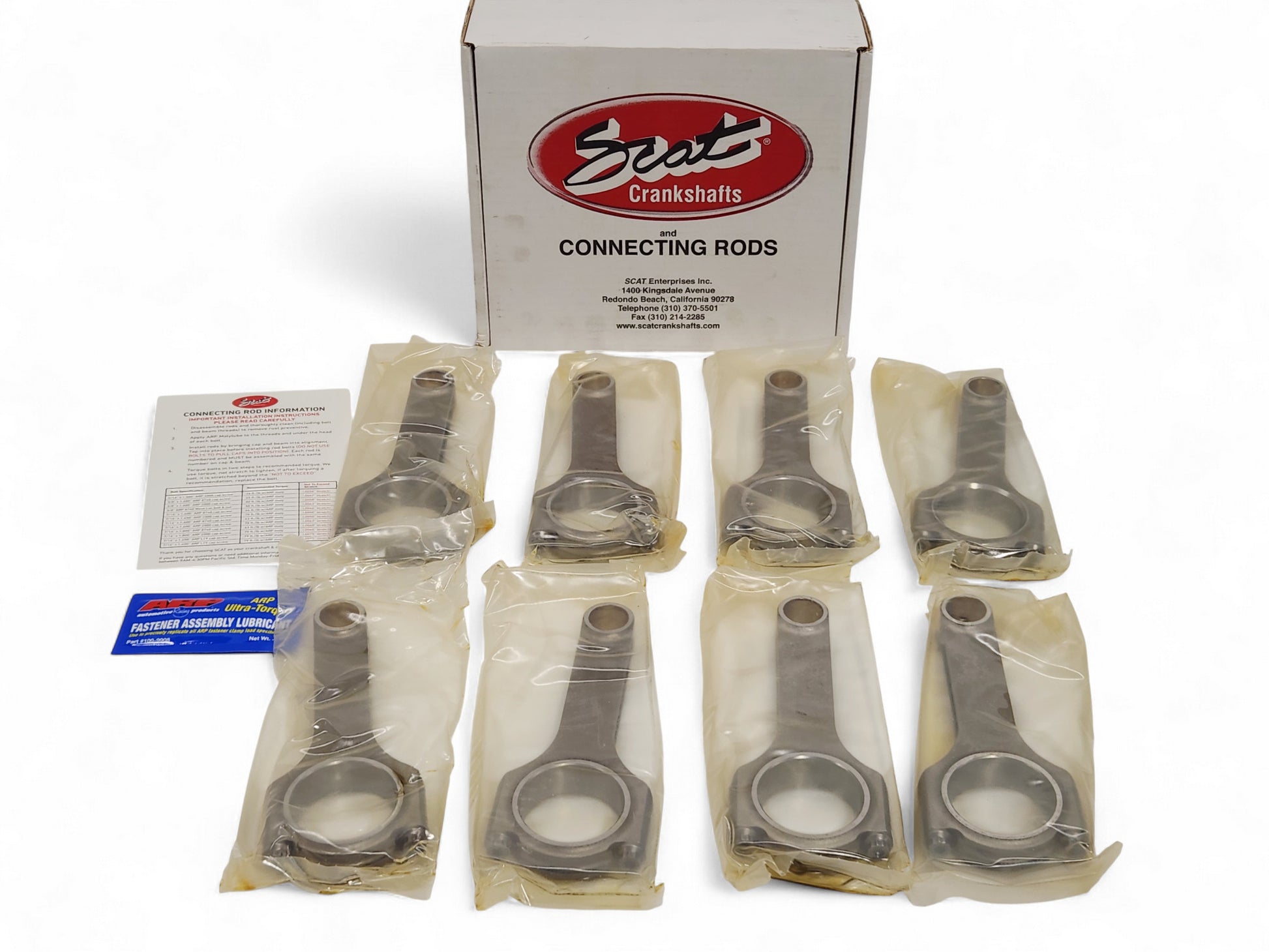

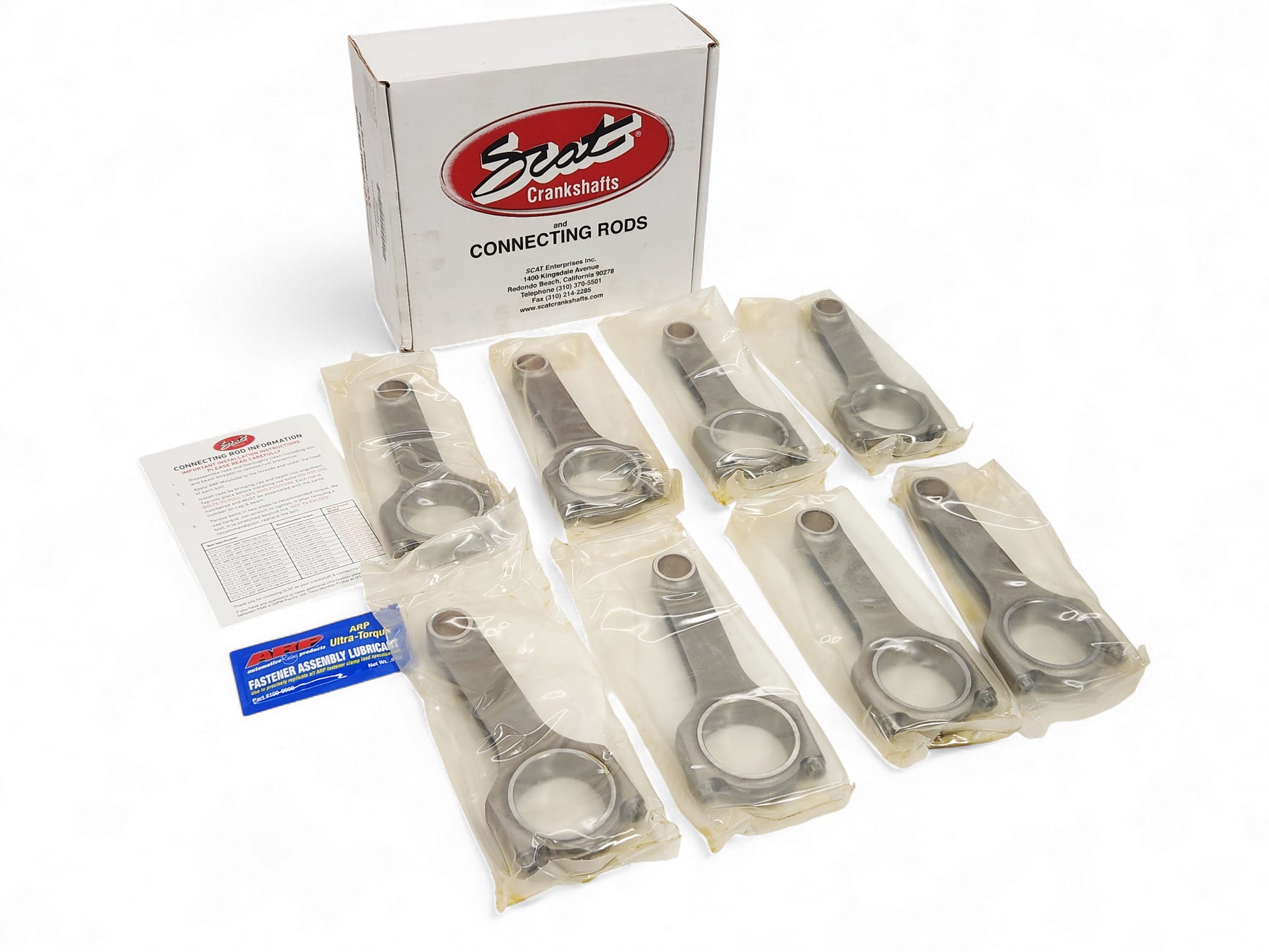

Actual rods you will receive are pictured

Big End Bore Diameter (in) 2.2250 in.
Big End Width (in) 0.940 in.
Cap Retention Style Cap screw
Clearanced for Stroker Yes
Connecting Rod Beam Style H-beam
Connecting Rod Bolt Brand ARP
Connecting Rod Bolt Diameter 7/16 in.
Connecting Rod Bolt Head Style 12-point
Connecting Rod Bolt Material 8740 chromoly steel
Connecting Rod Finish Shot-peened and tumbled
Connecting Rod Length Center to Center (in) 6.100 in.
Connecting Rod Material Forged 4340 steel
Fastener Yield Strength (psi) 180,000 psi
Magnafluxed No
Pin End Bore Diameter 0.945 in.
Quantity Sold as a set of 8.
Remanufactured No
Rod Journal Diameter (in) 2.100 in.
Weight Matched Set Yes
Wrist Pin Style Floating
