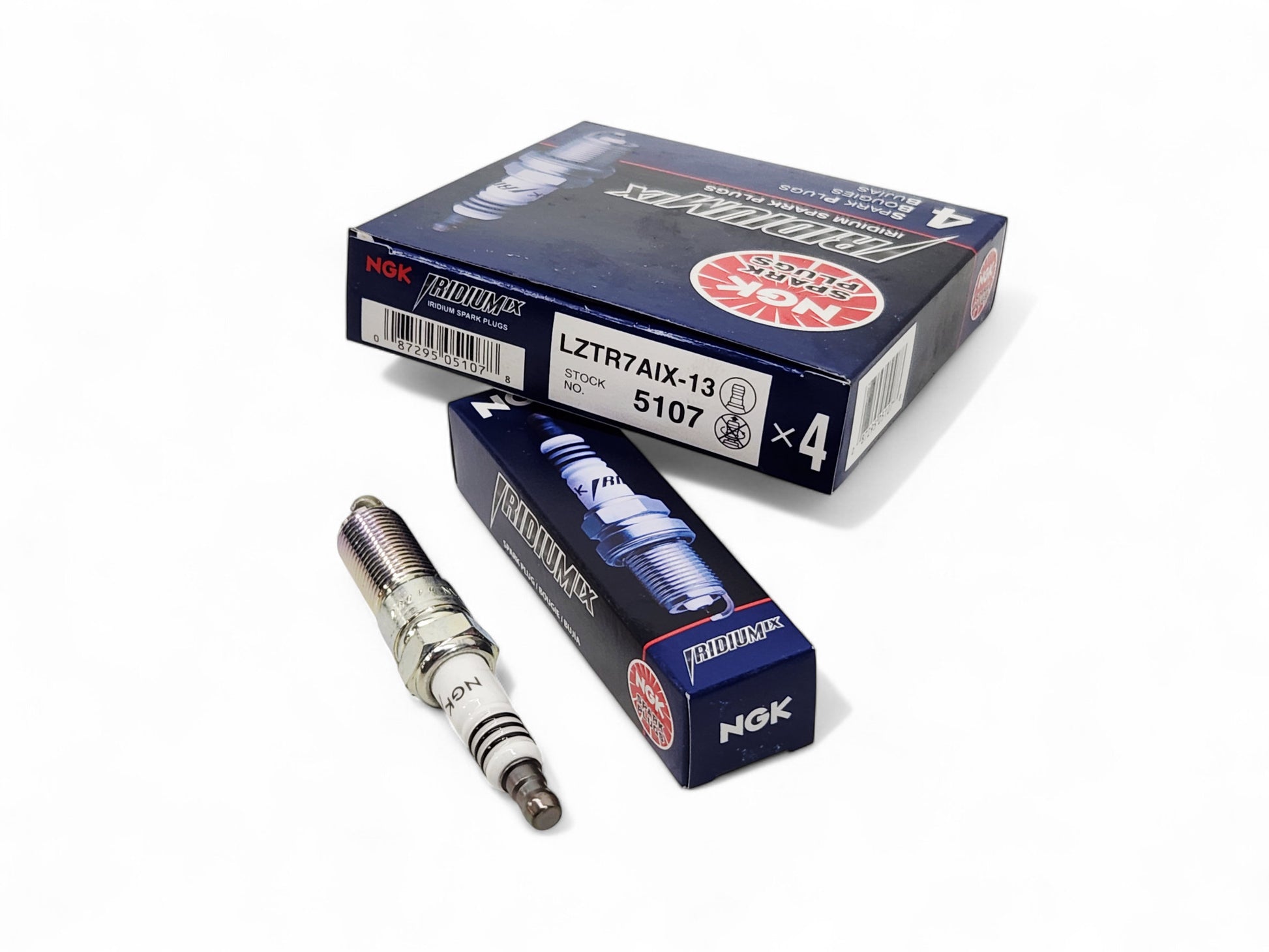

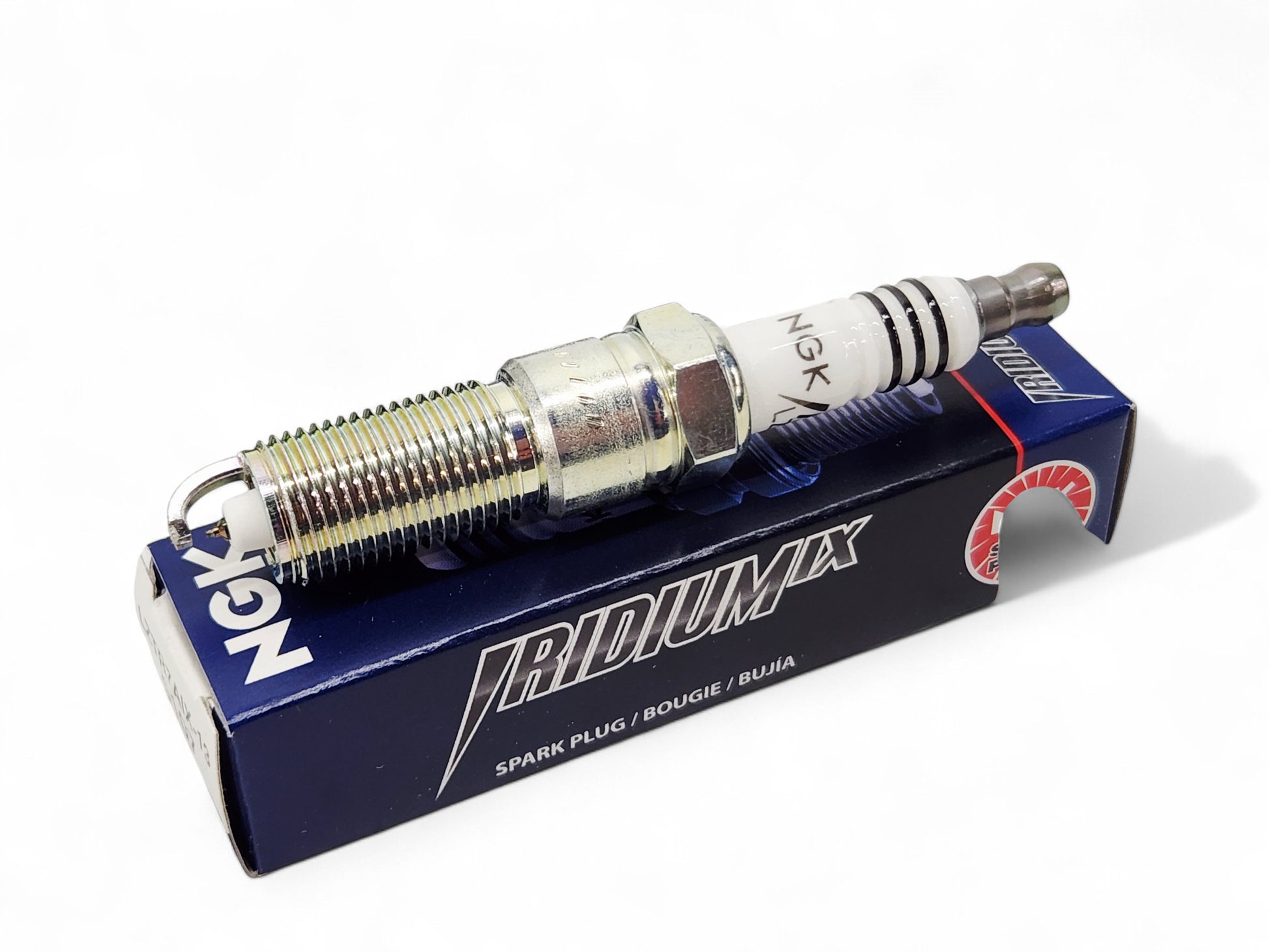

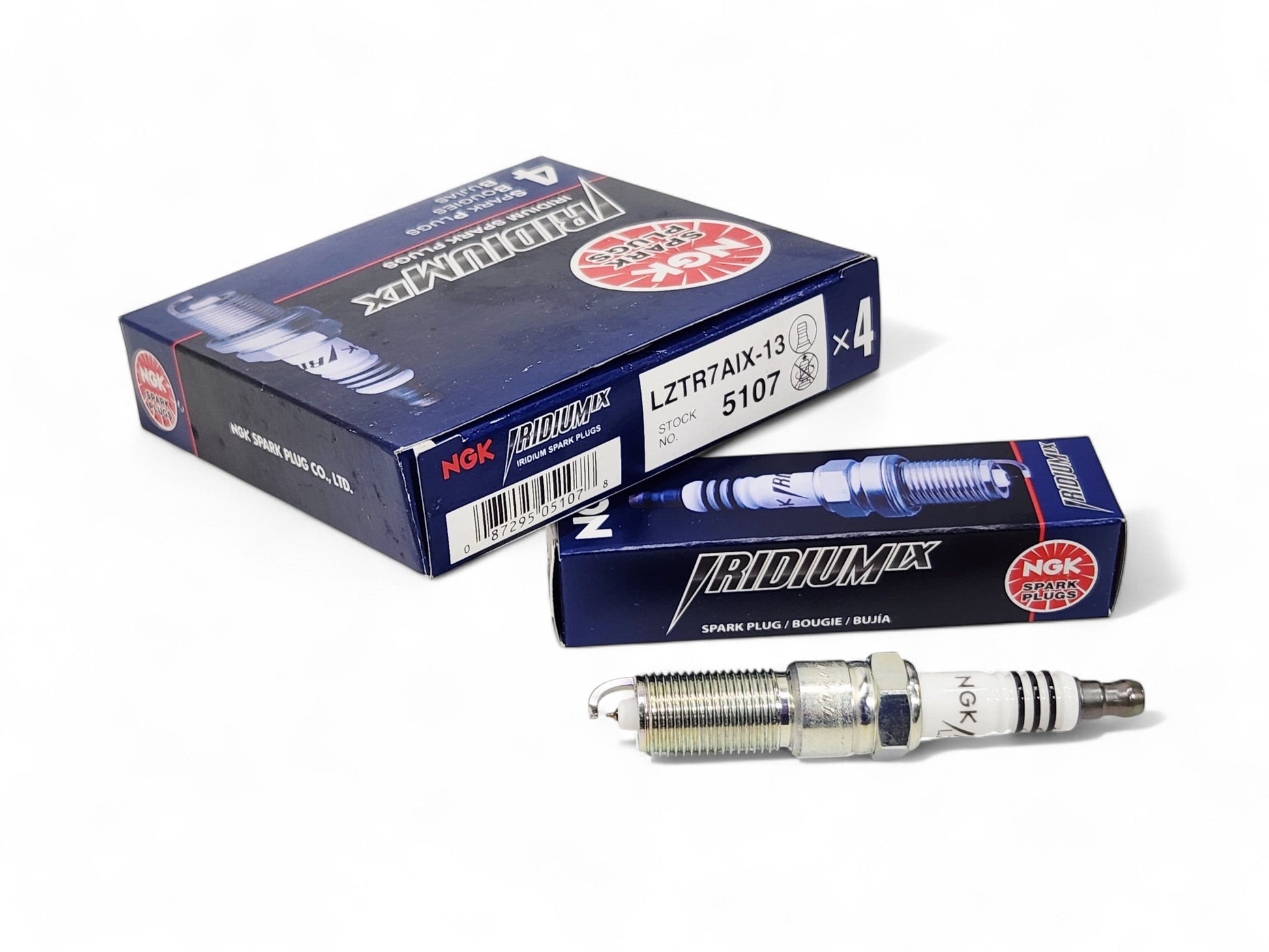

(Set of 4) Iridium IX Spark Plugs NGK 5107 - LZTR7AIX-13

(Set of 4) Iridium IX Spark Plugs NGK 5107 - LZTR7AIX-13

$28.00
$28.00
Sale Sold out

Free shipping within the Continental USA

3 in stock

Manufacturer: NGK

Part # LZTR7AIX-13

NGK IX Iridium Series plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Shell

  • Thread Diameter: 14mm
  • Thread Pitch: 1.25mm
  • Seat Type: Tapered
  • Reach25mm (1")
  • Hex Size5/8" (16mm)
  • Terminal Type: Solid
  • Overall Height: ISO
  • Gap.050" (1.3mm)

Center Electrode

  • Material: Iridium
  • Type: Fine Wire
  • Size0.6mm
  • Projection: Extended Projection

Ground Electrode

  • Material: Nickel
  • Type: Standard
  • Shape: Taper Cut
  • Quantity 1 box of 4

Specifications

  • Resistor: Yes
  • Resistor Value: 5k Ohm
  • Heat Range: 7
  • Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb. ft.
